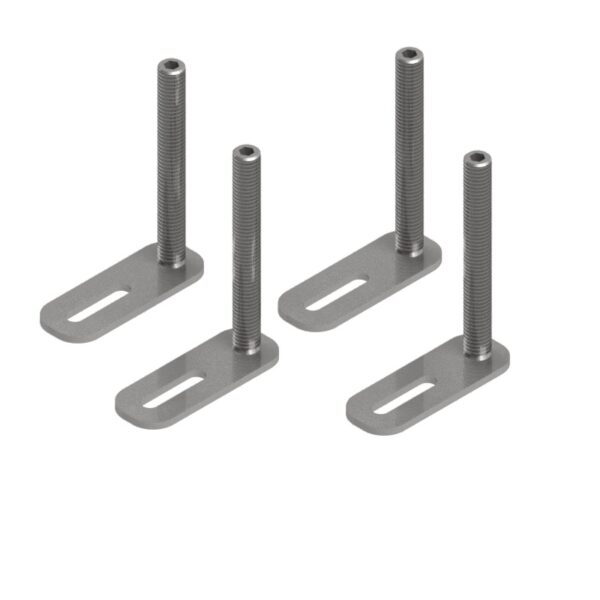

UBD 001 070 – Nivellierschrauben Länge 70mm
UBD 001 070 - Vis de nivellement, longueur 70mm
UBD 001 070 - Leveling screws length 70mm
UBD 001 070 - Viti di livellamento lunghezza 70mm
DE
Set à 4 Stück für UBD 100 bis UBD 210

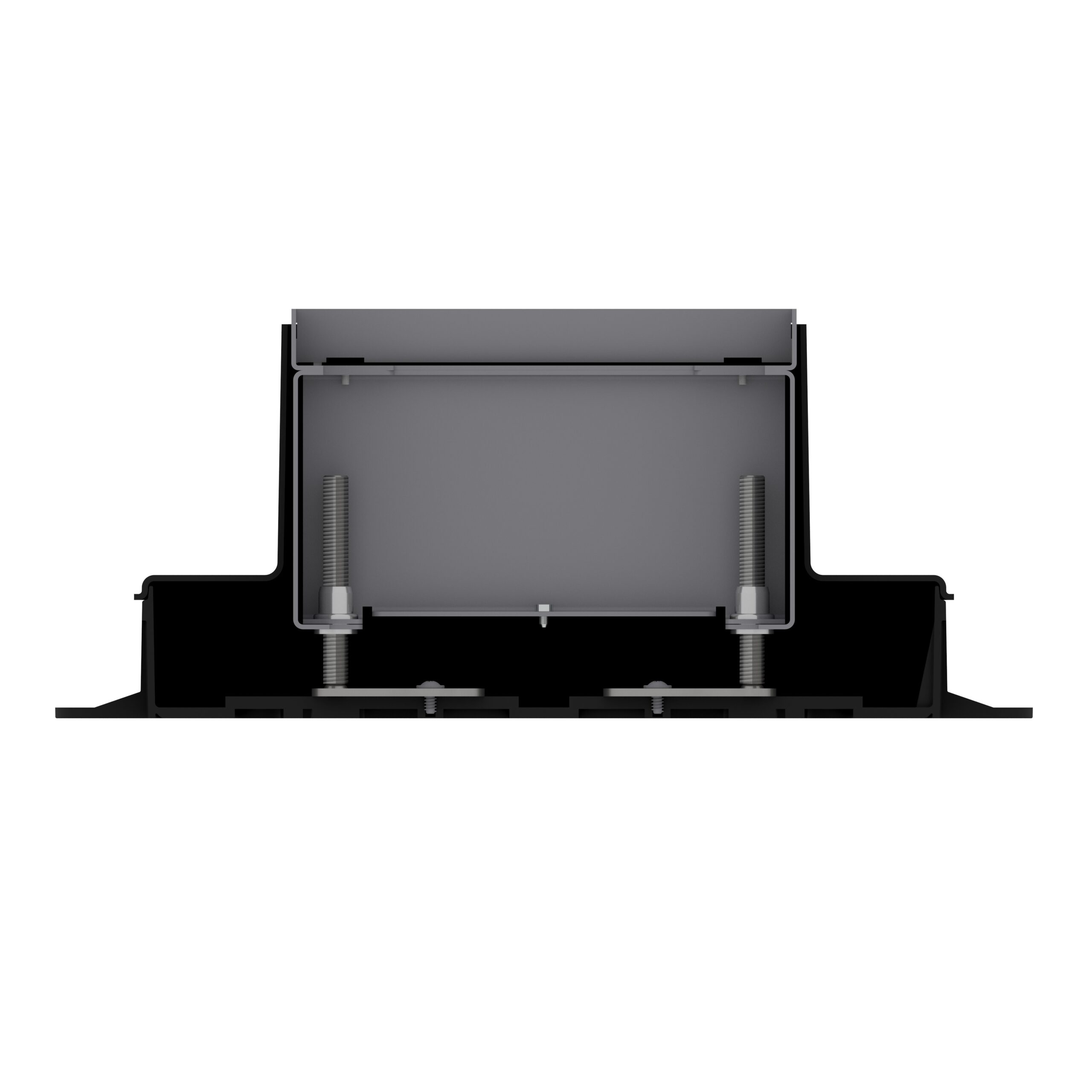

Bodenaufbauhöhe von Roh- bis Fertigboden:
– (UBD 100, 15mm Vertiefung): min. 120mm, max. 167mm
– (UBD 130, 15mm Vertiefung): min. 117mm, max. 156mm
– (UBD 160, 15mm Vertiefung): min. 116mm, max. 161mm
– (UBD 160 small, 15mm Vertiefung): min. 103mm, max. 127mm
– (UBD 210, 15mm Vertiefung): min. 112mm, max. 159mm
– (UBD 210 small, 15mm Vertiefung): min. 97mm, max. 127mm
ensemble de 4 pièces pour boîte de sol UBD 100 à UBD 210
Hauteur de construction du sol brut au sol fini :
– (UBD 100, évidement de 15mm) : min. 120mm, max. 167mm
– (UBD 130, évidement de 15mm) : min. 117mm, max
. 156mm- (UBD 160, évidement de 15mm) : min. 116mm, max. 161mm
– (UBD 160 small, évidement de 15mm) : min. 103mm, max. 127mm
– (UBD 210, évidement de 15mm) : min. 112mm, max. 159mm
– (UBD 210 small, évidement de 15 mm) : min. 97 mm, max. 127 mm
Set of 4 pieces for UBD 100 to UBD 210
Floor construction height from subfloor to finished floor:
– (UBD 100, 15mm recess): min. 120mm, max. 167mm
– (UBD 130, 15mm recess): min. 117mm, max. 156mm
– (UBD 160, 15mm recess): min. 116mm, max. 161mm
– (UBD 160 small, 15mm recess): min. 103mm, max. 127mm
– (UBD 210, 15mm recess): min. 112mm, max. 159mm
– (UBD 210 small, 15mm recess): min. 97mm, max. 127mm
Set di 4 pezzi per UBD 100 a UBD 210
Altezza della costruzione del pavimento dal grezzo al pavimento finito:
– (UBD 100, 15mm di profondità): min. 120mm, max. 167mm
– (UBD 130, 15mm di profondità): min. 117mm, max. 156mm
– (UBD 160, 15mm di profondità): min. 116mm, max. 161mm
– (UBD 160 small, 15mm di profondità): min. 103mm, max. 127mm
– (UBD 210, 15mm di profondità): min. 112mm, max. 159mm
– (UBD 210 small, 15mm di profondità): min. 97mm, max. 127mm
Zusätzliche Informationen
| Gewicht | 0.15 kg |
|---|---|
| Größe | 7 cm |
