UBD 001 095 – Nivellierschrauben Länge 95mm
UBD 001 095 - Vis de nivellement, longueur 95mm

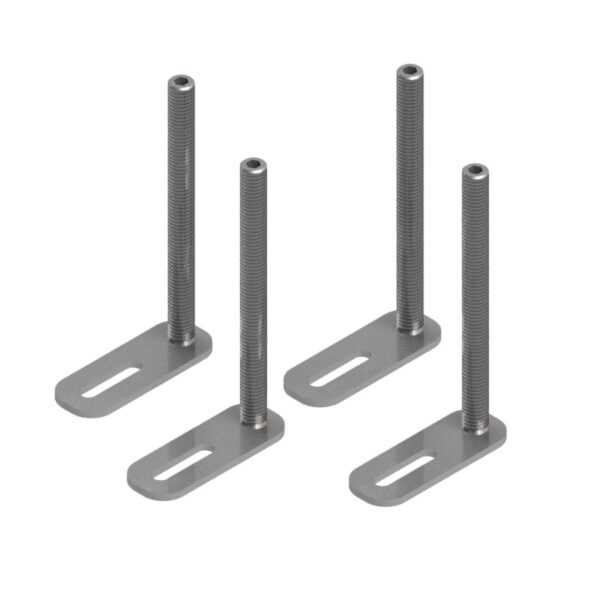

UBD 001 095 - Leveling screws length 95mm
UBD 001 095 - Viti di livellamento lunghezza 95mm
DE

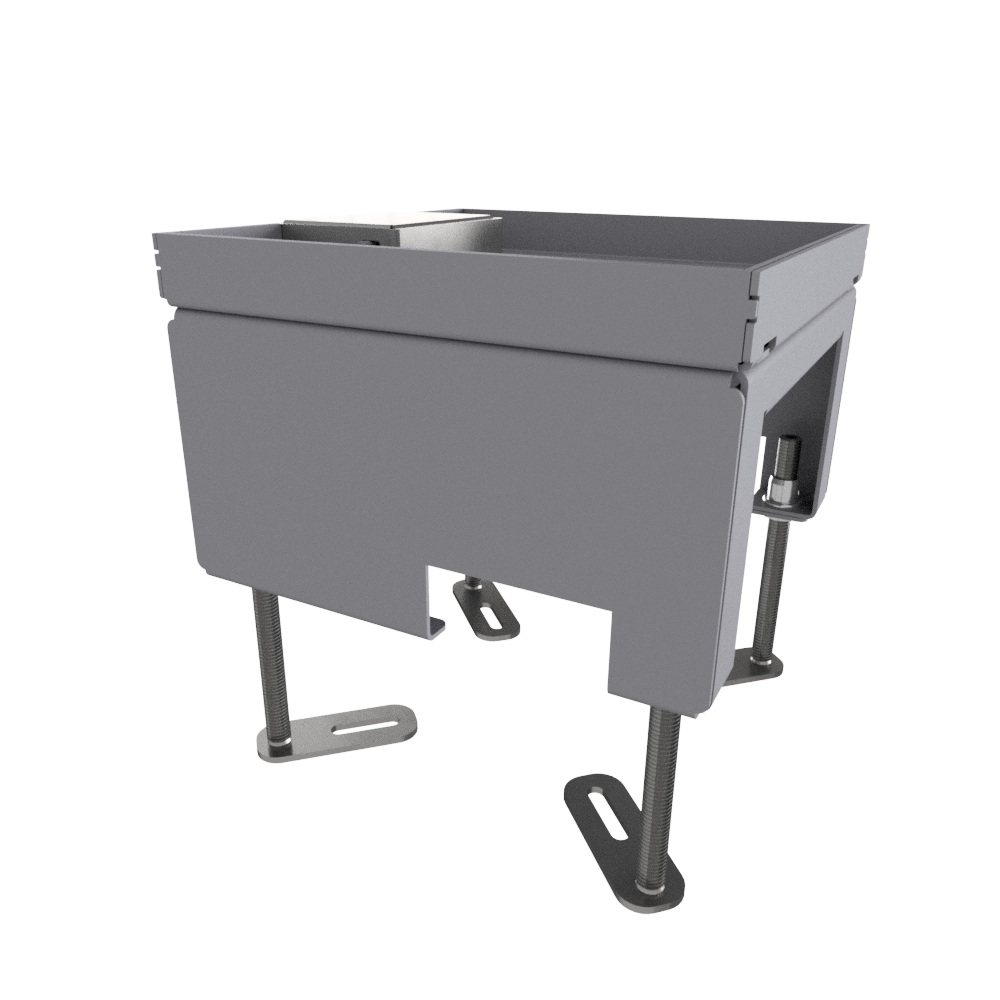

Set à 4 Stück für UBD 100 bis UBD 210
Bodenaufbauhöhe von Roh- bis Fertigboden:
– (UBD 100, 15mm Vertiefung): min. 129mm, max. 192mm
– (UBD 130, 15mm Vertiefung): min. 129mm, max. 181mm
– (UBD 160, 15mm Vertiefung): min. 128mm, max. 186mm
– (UBD 160 small, 15mm Vertiefung): min. 128mm, max. 152mm
– (UBD 210, 15mm Vertiefung): min. 128mm, max. 184mm
– (UBD 210 small, 15mm Vertiefung): min. 122mm, max. 152mm
ensemble de 4 pièces pour boîte de sol UBD 100 à UBD 210
Hauteur de construction du sol brut au sol fini :
– (UBD 100, évidement de 15mm) : min. 129 mm, max. 192 mm
– (UBD 130, évidement de 15mm) : min. 129 mm, max. 181 mm
– (UBD 160, évidement de 15mm) : min. 128 mm, max. 186 mm
– (UBD 160 small, évidement de 15mm) : min. 128 mm, max. 184 mm
– (UBD 210 small, évidement de 15 mm) : min. 122 mm, max. 152 mm
Set of 4 pieces for UBD 100 to UBD 210

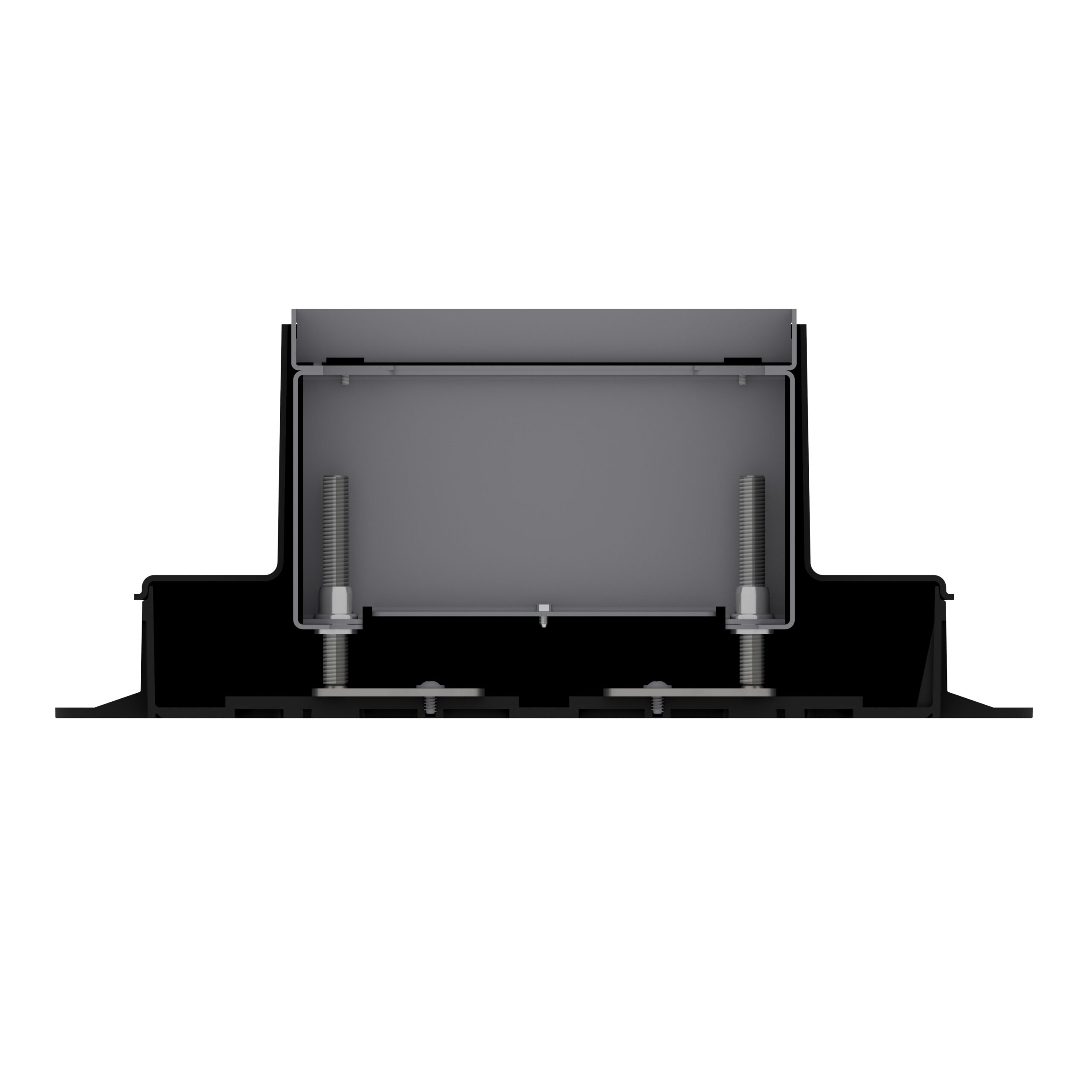

Floor construction height from subfloor to finished floor:
– (UBD 100, 15mm recess): min. 129mm, max. 192mm
– (UBD 130, 15mm recess): min. 129mm, max. 181mm
– (UBD 160, 15mm recess): min. 128mm, max. 186mm
– (UBD 160 small, 15mm recess): min. 128mm, max. 152mm
– (UBD 210, 15mm recess): min. 128mm, max. 184mm
– (UBD 210 small, 15mm recess): min. 122mm, max. 152mm
Set di 4 pezzi per UBD 100 a UBD 210
Altezza della costruzione del pavimento dal grezzo al pavimento finito:
– (UBD 100, 15mm di profondità): min. 129mm, max. 192mm
– (UBD 130, 15mm di profondità): min. 129mm, max. 181mm
– (UBD 160, 15mm di profondità): min. 128mm, max. 186mm
– (UBD 160 small, 15mm di profondità): min. 128mm, max. 152mm
– (UBD 210, 15mm di profondità): min. 128mm, max. 184mm
– (UBD 210 small, 15mm di profondità): min. 122mm, max. 152mm
Zusätzliche Informationen
| Gewicht | 0.19 kg |
|---|---|
| Größe | 9.5 cm |
