UBD 001 120 – Nivellierschrauben Länge 120mm
UBD 001 120 - Vis de nivellement, longueur 120mm

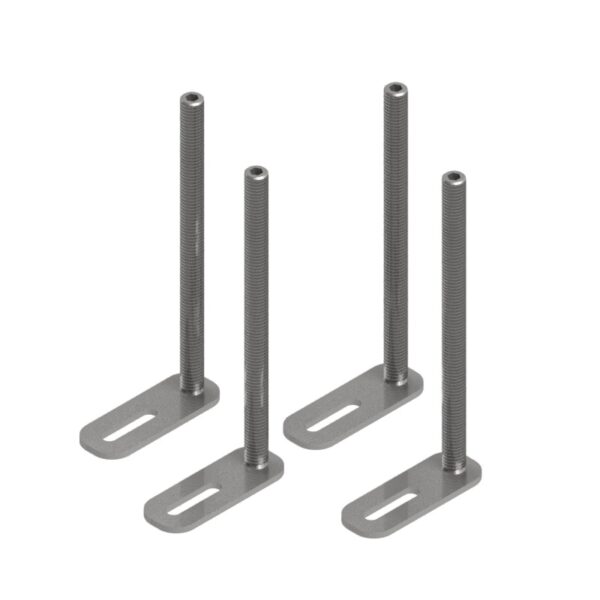

UBD 001 120 - Leveling screws length 120mm
UBD 001 120 - Viti di livellamento lunghezza 120mm
DE
Set à 4 Stück für UBD 100 bis UBD 210
Bodenaufbauhöhe von Roh- bis Fertigboden:
– (UBD 100, 15mm Vertiefung): min. 154mm, max. 217mm
– (UBD 130, 15mm Vertiefung): min. 154mm, max. 206mm
– (UBD 160, 15mm Vertiefung): min. 153mm, max. 211mm
– (UBD 160 small, 15mm Vertiefung): min. 153mm, max. 177mm
– (UBD 210, 15mm Vertiefung): min. 153mm, max. 209mm
– (UBD 210 small, 15mm Vertiefung): min. 147mm, max. 177mm
ensemble de 4 pièces pour boîte de sol UBD 100 à UBD 210
Hauteur de construction du sol brut au sol fini :
– (UBD 100, évidement de 15mm) : min. 154mm, max. 217mm
– (UBD 130, évidement de 15mm) : min. 154mm, max. 206mm
– (UBD 160, évidement de 15mm) : min. 153mm, max. 211mm
– (UBD 160 small, évidement de 15mm) : min. 153mm, max. 177mm
– (UBD 210, évidement de 15mm) : min. 153mm, max. 209mm
– (UBD 210 small, évidement de 15 mm) : min. 147 mm, max. 177 mm
Set of 4 pieces for UBD 100 to UBD 210
Floor construction height from subfloor to finished floor:
– (UBD 100, 15mm recess): min. 154mm, max. 217mm
– (UBD 130, 15mm recess): min. 154mm, max. 206mm
– (UBD 160, 15mm recess): min. 153mm, max. 211mm
– (UBD 160 small, 15mm recess): min. 153mm, max. 177mm
– (UBD 210, 15mm recess): min. 153mm, max. 209mm
– (UBD 210 small, 15mm recess): min. 147mm, max. 177mm
Set di 4 pezzi per UBD 100 a UBD 210
Altezza della costruzione del pavimento dal grezzo al pavimento finito:
– (UBD 100, 15mm di profondità): min. 154mm, max. 217mm
– (UBD 130, 15mm di profondità): min. 154mm, max. 206mm
– (UBD 160, 15mm di profondità): min. 153mm, max. 211mm
– (UBD 160 small, 15mm di profondità): min. 153mm, max. 177mm
– (UBD 210, 15mm di profondità): min. 153mm, max. 209mm
– (UBD 210 small, 15mm di profondità): min. 147mm, max. 177mm
Zusätzliche Informationen
| Gewicht | 0.23 kg |
|---|---|
| Größe | 12 cm |
