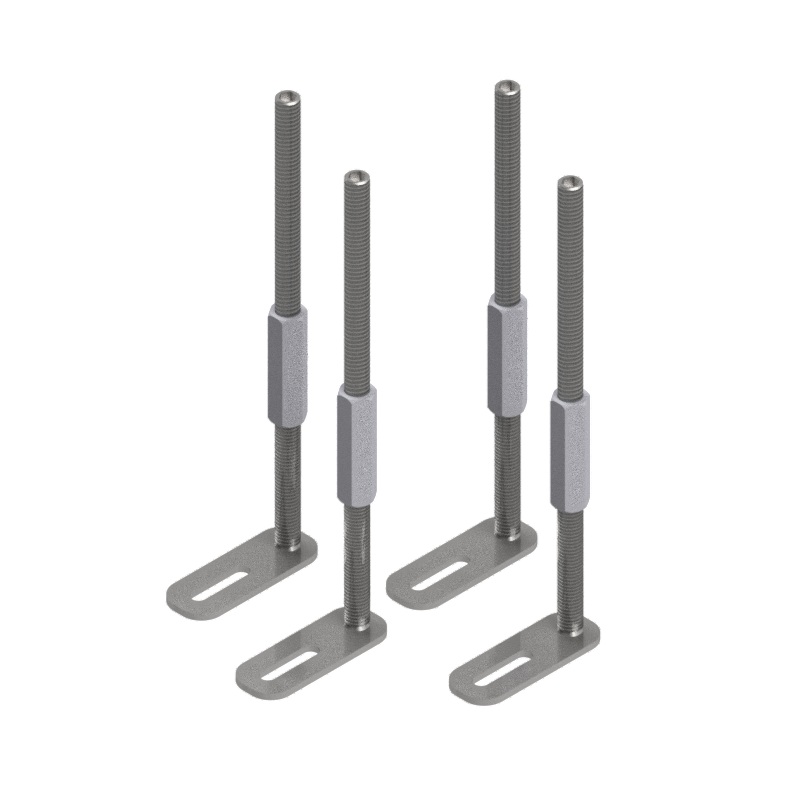

UBD 001 170 – Nivellierschrauben M8, Länge 170mm (Niv. 70mm + Verl. 100mm)
UBD 001 170 - Vis de nivellement M8, longueur 170mm (vis 70mm + l. 100mm)
UBD 001 170 - Leveling screws M8, length 170mm (screw 70mm + extension 100mm)
UBD 001 170 - Viti di livellamento M8, lunghezza 170mm (Liv. 70mm + Rall. 100mm)
DE
Set à 4 Stück für UBD 100 bis UBD 210

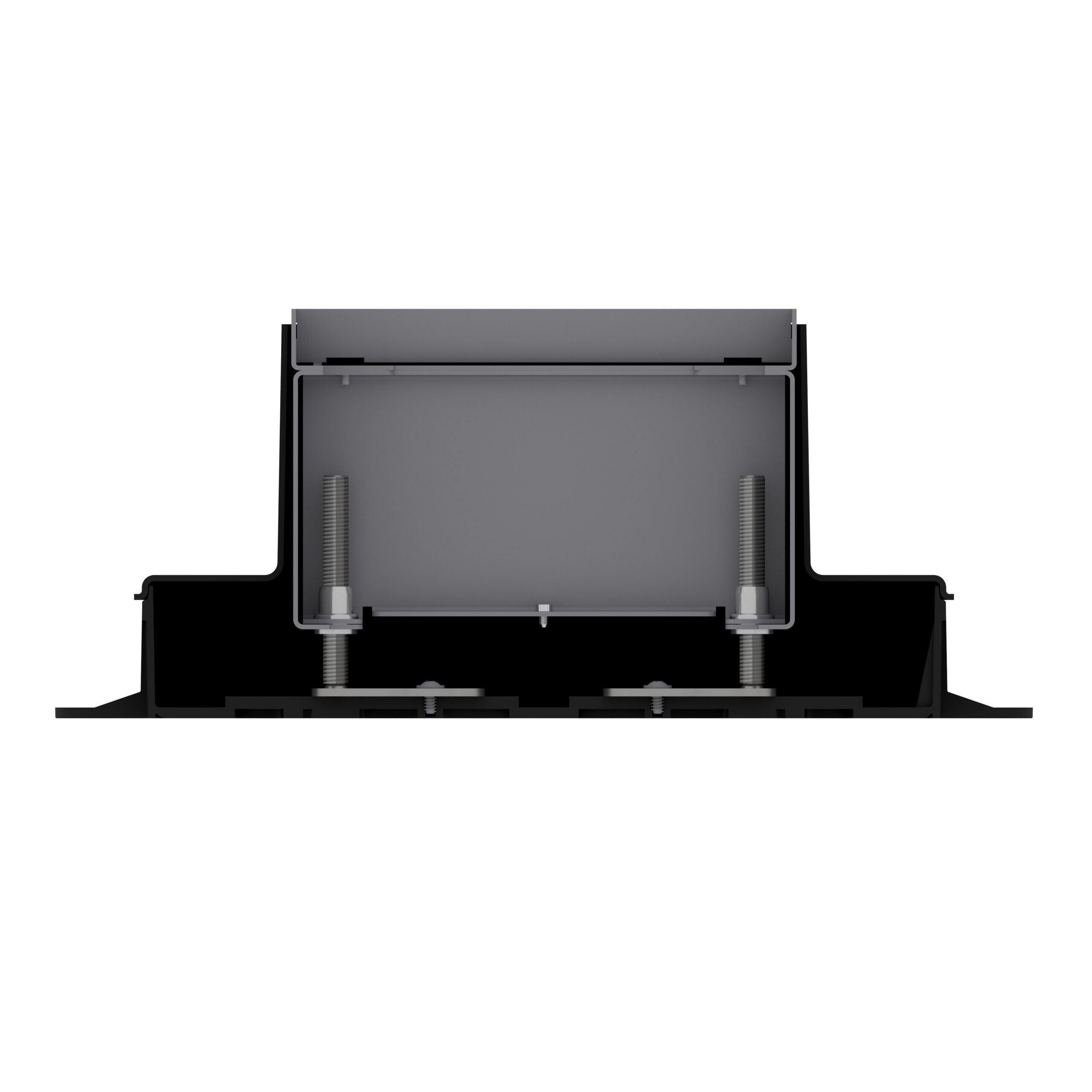

Bodenaufbauhöhe von Roh- bis Fertigboden:
– (UBD 100, 15mm Vertiefung): min. 204mm, max. 267mm
– (UBD 130, 15mm Vertiefung): min. 204mm, max. 256mm
– (UBD 160, 15mm Vertiefung): min. 203mm, max. 261mm
– (UBD 160 small, 15mm Vertiefung): min. 203mm, max. 227mm
– (UBD 210, 15mm Vertiefung): min. 203mm, max. 259mm
– (UBD 210 small, 15mm Vertiefung): min. 197mm, max. 227mm
ensemble de 4 pièces pour boîte de sol UBD 100 à UBD 210
Hauteur de construction du sol brut au sol fini :
– (UBD 100, évidement de 15mm) : min. 204mm, max. 267mm
– (UBD 130, évidement de 15mm) : min. 204mm, max. 256mm
– (UBD 160, évidement de 15mm) : min. 203mm, max. 261mm
– (UBD 160 small, évidement de 15mm) : min. 203mm, max. 227mm
– (UBD 210, évidement de 15mm) : min. 203mm, max. 259mm
– (UBD 210 small, évidement de 15 mm) : min. 197 mm, max. 227 mm
Set of 4 pieces for UBD 100 to UBD 210
Floor construction height from subfloor to finished floor:
– (UBD 100, 15mm recess): min. 204mm, max. 267mm
– (UBD 130, 15mm recess): min. 204mm, max. 256mm
– (UBD 160, 15mm recess): min. 203mm, max. 261mm
– (UBD 160 small, 15mm recess): min. 203mm, max. 227mm
– (UBD 210, 15mm recess): min. 203mm, max. 259mm
– (UBD 210 small, 15mm recess): min. 197mm, max. 227mm
Set di 4 pezzi per UBD 100 a UBD 210
Altezza della costruzione del pavimento dal grezzo al pavimento finito:
– (UBD 100, 15mm di profondità): min. 204mm, max. 267mm
– (UBD 130, 15mm di profondità): min. 204mm, max. 256mm
– (UBD 160, 15mm di profondità): min. 203mm, max. 261mm
– (UBD 160 small, 15mm di profondità): min. 203mm, max. 227mm
– (UBD 210, 15mm di profondità): min. 203mm, max. 259mm
– (UBD 210 small, 15mm di profondità): min. 197mm, max. 227mm
Zusätzliche Informationen
| Gewicht | 0.35 kg |
|---|---|
| Größe | 17 cm |
