UBD 001 195 – Nivellierschrauben M8, Länge 195mm (Niv. 95mm + Verl. 100mm)
UBD 001 195 - Vis de nivellement M8, longueur 195mm (vis 95mm + rallonge 100mm)

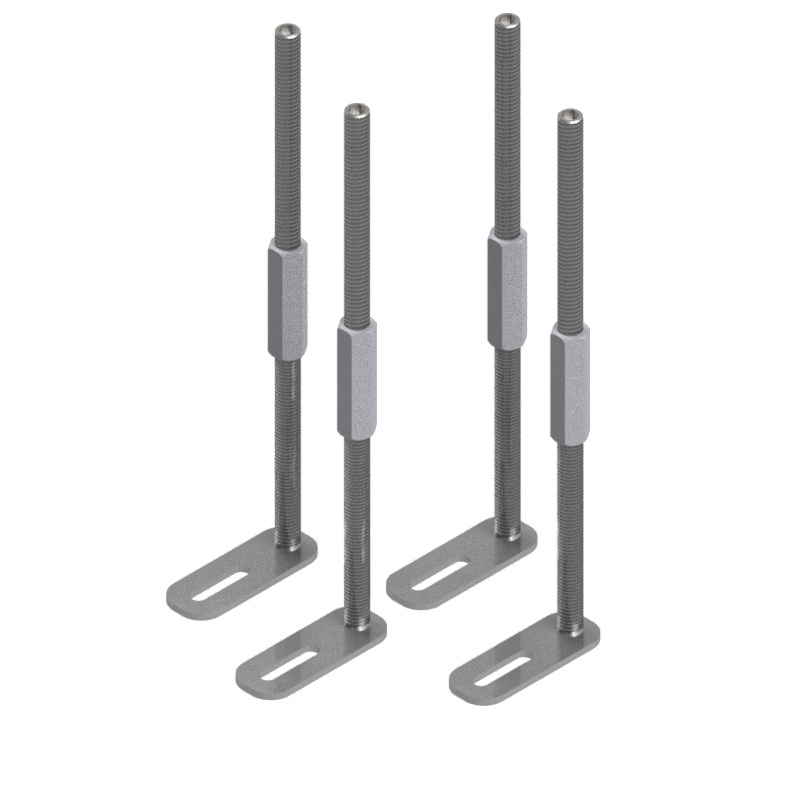

UBD 001 195 - Leveling screws M8, length 195mm (screw 95mm + extension 100mm)
UBD 001 195 - Viti di livellamento M8, lunghezza 195mm (Liv. 95mm + Rall. 100mm)
DE
Set à 4 Stück für UBD 100 bis UBD 210
Bodenaufbauhöhe von Roh- bis Fertigboden:
– (UBD 100, 15mm Vertiefung): min. 229mm, max. 292mm
– (UBD 130, 15mm Vertiefung): min. 229mm, max. 281mm
– (UBD 160, 15mm Vertiefung): min. 228mm, max. 286mm
– (UBD 160 small, 15mm Vertiefung): min. 228mm, max. 252mm
– (UBD 210, 15mm Vertiefung): min. 228mm, max. 284mm
– (UBD 210 small, 15mm Vertiefung): min. 222mm, max. 252mm
ensemble de 4 pièces pour boîte de sol UBD 100 à UBD 210
Hauteur de construction du sol brut au sol fini :
– (UBD 100, évidement de 15mm) : min. 229 mm, max. 292 mm
– (UBD 130, évidement de 15mm) : min. 229 mm, max. 281 mm
– (UBD 160, évidement de 15mm) : min. 228 mm, max. 286 mm
– (UBD 160 small, évidement de 15mm) : min. 228 mm, max. 284 mm
– (UBD 210, 15mm évidement): min. 228mm, max. 284mm
– (UBD 210 small, évidement de 15 mm) : min. 222 mm, max. 252 mm
Set of 4 pieces for UBD 100 to UBD 210
Floor construction height from subfloor to finished floor:
– (UBD 100, 15mm recess): min. 229mm, max. 292mm
– (UBD 130, 15mm recess): min. 229mm, max. 281mm
– (UBD 160, 15mm recess): min. 228mm, max. 286mm
– (UBD 160 small, 15mm recess): min. 228mm, max. 252mm
– (UBD 210, 15mm recess): min. 228mm, max. 284mm
– (UBD 210 small, 15mm recess): min. 222mm, max. 252mm
Set di 4 pezzi per UBD 100 a UBD 210
Altezza della costruzione del pavimento dal grezzo al pavimento finito:
– (UBD 100, 15mm di profondità): min. 229mm, max. 292mm
– (UBD 130, 15mm di profondità): min. 229mm, max. 281mm
– (UBD 160, 15mm di profondità): min. 228mm, max. 286mm
– (UBD 160 small, 15mm di profondità): min. 228mm, max. 252mm
– (UBD 210, 15mm di profondità): min. 228mm, max. 284mm
– (UBD 210 small, 15mm di profondità): min. 222mm, max. 252mm
Zusätzliche Informationen
| Gewicht | 0.39 kg |
|---|---|
| Größe | 19.5 cm |
