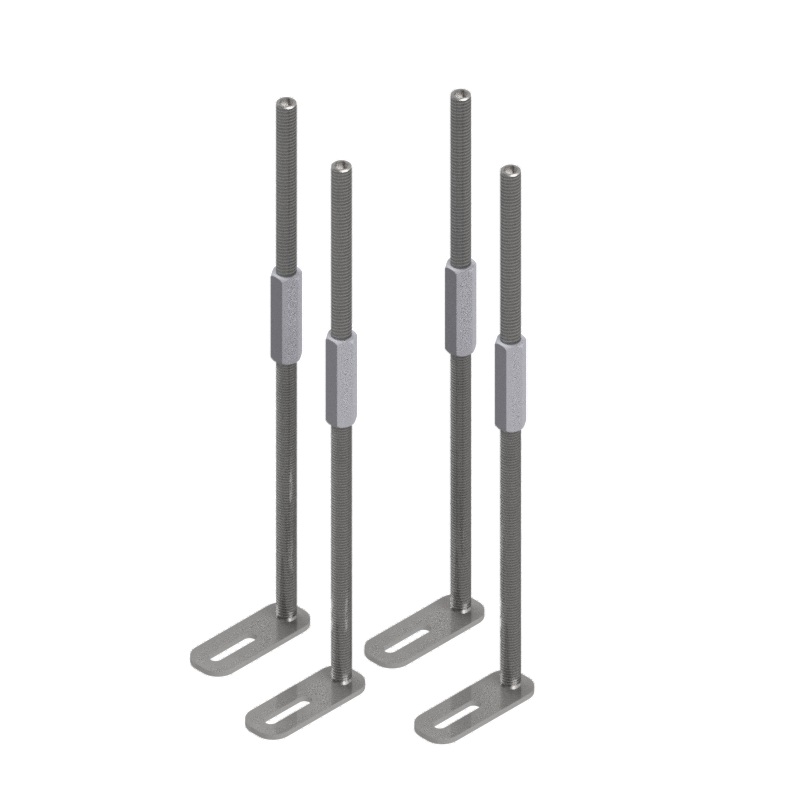

UBD 001 245 – Nivellierschrauben M8, Länge 245mm (Niv. 145mm + Verl. 100mm)
UBD 001 245 - Vis de nivellement M8, longueur 245mm (vis 145mm + rallonge 100mm)
UBD 001 245 - Leveling screws M8, length 245mm (screw 145mm + extension 100mm)
UBD 001 245 - Viti di livellamento M8, lunghezza 245mm (Liv. 145mm + Rall. 100mm)
DE
Set à 4 Stück für UBD 100 bis UBD 210
Bodenaufbauhöhe von Roh- bis Fertigboden:
– (UBD 100, 15mm Vertiefung): min. 279mm, max. 342mm
– (UBD 130, 15mm Vertiefung): min. 279mm, max. 331mm
– (UBD 160, 15mm Vertiefung): min. 278mm, max. 336mm
– (UBD 160 small, 15mm Vertiefung): min. 278mm, max. 302mm
– (UBD 210, 15mm Vertiefung): min. 278mm, max. 334mm
– (UBD 210 small, 15mm Vertiefung): min. 272mm, max. 302mm
ensemble de 4 pièces pour boîte de sol UBD 100 à UBD 210
Hauteur de construction du sol brut au sol fini :
– (UBD 100, évidement de 15mm) : min. 279mm, max. 342mm
– (UBD 130, évidement de 15mm) : min. 279mm, max. 331mm
– (UBD 160, évidement de 15mm) : min. 278mm, max. 336mm
– (UBD 160 small, évidement de 15mm) : min. 278mm, max. 302mm
– (UBD 210, évidement de 15mm) : min. 278mm, max. 334mm
– (UBD 210 small, évidement de 15 mm) : min. 272 mm, max. 302 mm
Set of 4 pieces for UBD 100 to UBD 210
Floor construction height from subfloor to finished floor:
– (UBD 100, 15mm recess): min. 279mm, max. 342mm
– (UBD 130, 15mm recess): min. 279mm, max. 331mm
– (UBD 160, 15mm recess): min. 278mm, max. 336mm
– (UBD 160 small, 15mm recess): min. 278mm, max. 302mm
– (UBD 210, 15mm recess): min. 278mm, max. 334mm
– (UBD 210 small, 15mm recess): min. 272mm, max. 302mm
Set di 4 pezzi per UBD 100 a UBD 210
Altezza della struttura del pavimento dal grezzo al pavimento finito:
– (UBD 100, 15mm di incavo): min. 279mm, max. 342mm
– (UBD 130, 15mm di incavo): min. 279mm, max. 331mm
– (UBD 160, 15mm di incavo): min. 278mm, max. 336mm
– (UBD 160 small, 15mm di incavo): min. 278mm, max. 302mm
– (UBD 210, 15mm di incavo): min. 278mm, max. 334mm
– (UBD 210 small, 15mm di incavo): min. 272mm, max. 302mm
Zusätzliche Informationen
| Gewicht | 0.45 kg |
|---|---|
| Größe | 24.5 cm |
